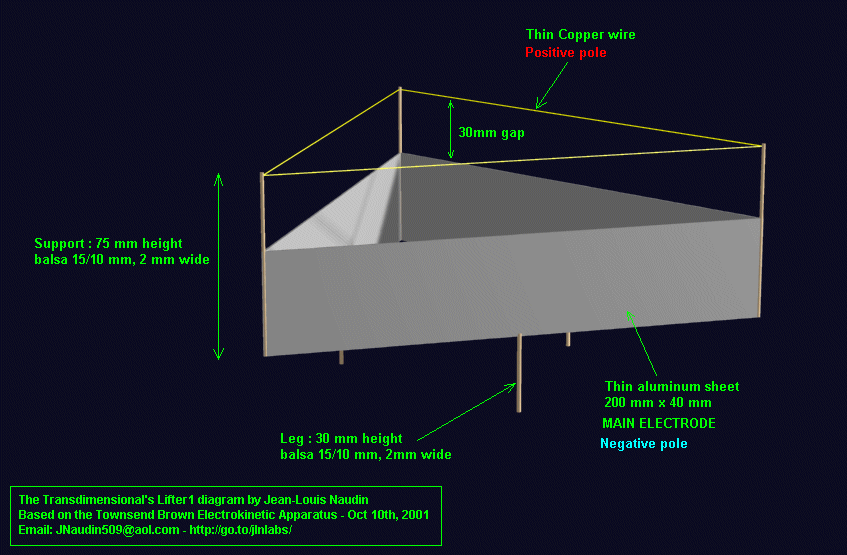

How to build and replicate
yourself the Lifter1 Experiment
By Jean-Louis Naudin
created on October 10th, 2001 - JLN
Labs - Last update January 11, 2002
All
informations in this page are published free and are intended for
private/educational purposes and not for commercial
applications

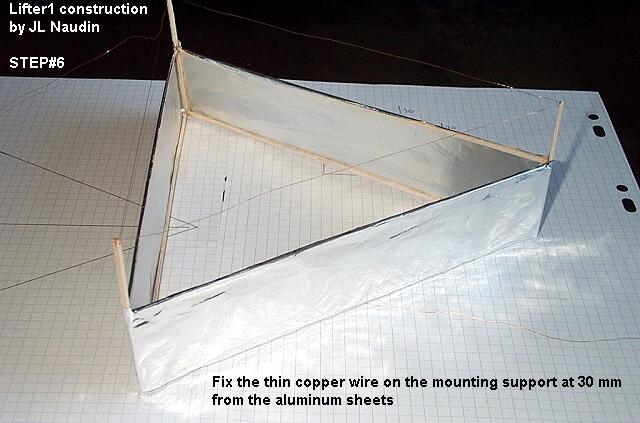

Your Lifter1 is now ready for testing, you need only to connect a HV power supply which is able to give about 30-40 KV at 500uA. Th HV positive pole is connected to the thin wire and the negative pole to the aluminum sheet.
| BE CAREFUL, USE EXTREME CAUTION !!!, this device use High Voltage, ALWAYS switch off the input and discharge the output to the ground through 10k/2W resistor before touch it. These plans are not intended for the inexperienced. User of this document should be very carefull and experienced in High-Voltage electronics to try anything out ! If you do it the risk of any results is just yours. I take no responsibility of anything that might happen. |
Ready to Launch ? see below :

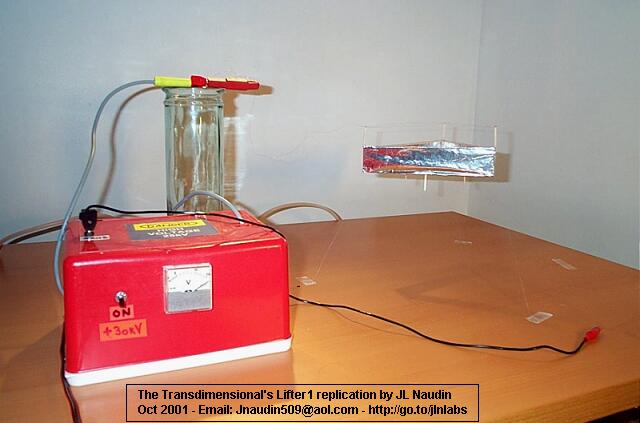

The Lifter1 works very well with a simple 30KV power supply ( see the details and diagram )

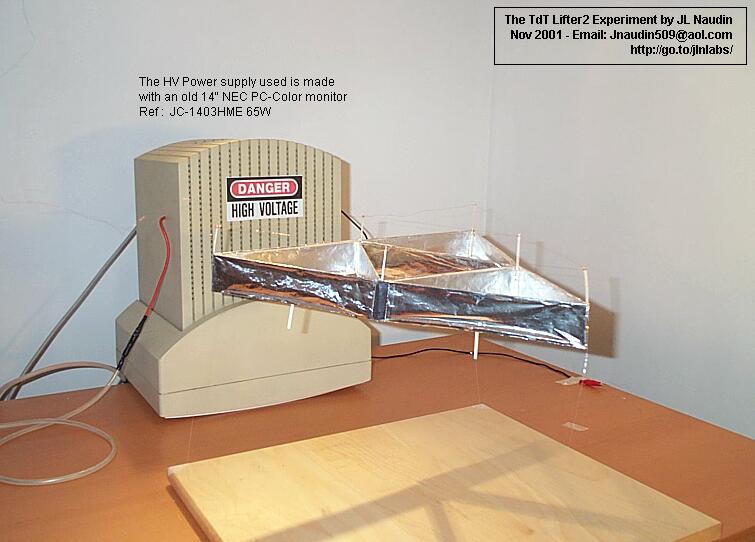

It is also possible to use the THT power supply output
from an old PC Color monitor ( see the photo above
)
Conseils pour
alimenter votre Lifter - par Claude
Dupré
Advices
for Powering a Lifter
